Bamboo Wall Cladding

< >

Anticorrosive Exterior Bamboo Wall Cladding / Bamboo Slat Wall Panels

Product Details

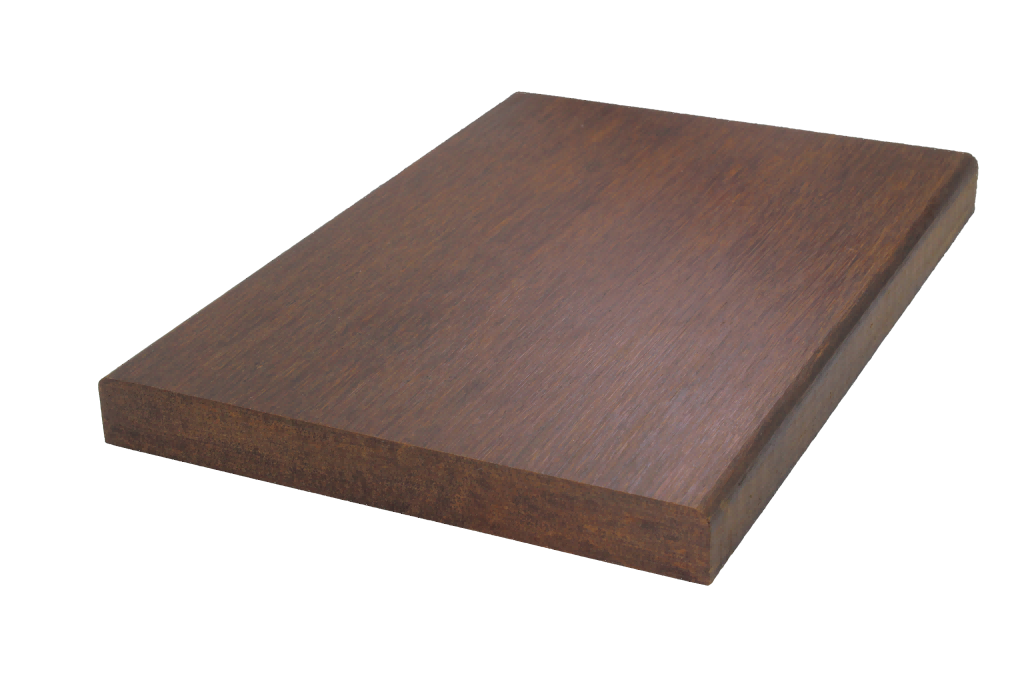

Anticorrosive Exterior Bamboo Wall Cladding /  Bamboo Slat Wall Panels


THJ outdoor high carbonized bamboo wall cladding is a carbonized, anti-corrosive bamboo board with tongue and groove joint,made from bamboo fibers that have been compressed and widely used in exterior applications.This unique processensures THJ bamboo cladding to be compliant with the EU standards and a prefect durability,improves the stability and density, but  also the high hardness. In addition, comparison with wood products, this material has superior performances can achieve fire resistance Class B1(EN13823 and ENISO11925-2) and not require to impregnate expensive and ecologically harmful flame retardants. THJ Bamboo Cladding is available in a variety of dimensions. Due to  prolonged exposure to the outside, the color of the bamboo will gradually tend to the natural look.

THJ Bamboo Wall Cladding boards are made from the fast growing Moso bamboo, a rapidly renewable resource that grow for over 1 meter at a night and for 20 meters after 2 months. Cutting down the bamboo reasonably, will make the ecology better than worse. Like any wood species, when exposured to outdoor , bamboo wall cladding will fade over time. it will provide a beautiful and elegant appearance.

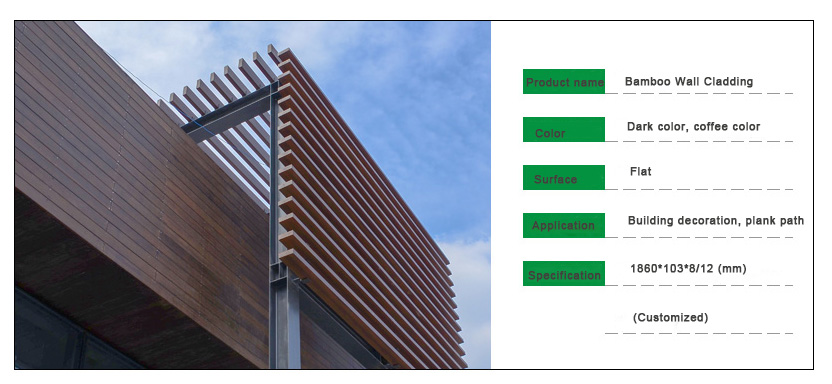

Product details:

Item

Outdoor Bamboo Wall Panels

Dimensions:

Length:1860mm

Width:103mm

Thickness 8/12mm

Color

dark colour

Surface treatment

bleached, sanded, with UV coating or outdoor oil

Material

Strand Woven Bamboo

Joint

Tongue & groove

Density

1.15-1.18kgs/m³

Hardness

70.4Gpa

Expansion rate or water absorption

0.35%

Moisture rate

8-12%

Certificate

ISO/SGS/EPH/TUV

Application

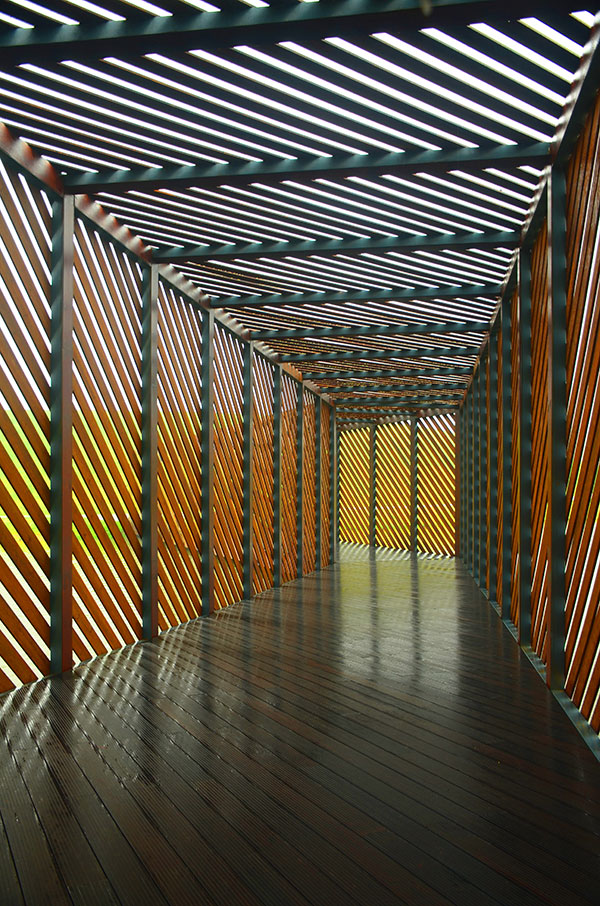

swimming pool, commercial buildings and any outdoor environment


OEM and customization acceptable

Compared with other wood:

    1. Natural anti-corrosion solid wood (Merbau,Teak, etc )-- Natural and beautiful, but not anti-termite, bad for forests resources,violating the ideas of environmental protection.

    2. Chemical anti-corrosion wood ( CCA )-- Containing heavy metals and toxic chemical composition ( Arsenic),polluting environment, prohibited in United States, Japan and EU countries.

    3. Chemical anti-corrosion woods ( ACQ ) --Non-toxic processing under chemical methods, bad mucor proof, limited application ( unfavorable to touch soil ).

    4. Carbonized wood-- Good Eco-friendly performance, wide usage, but damage to forest resources and limited application ( unfavorable to touch soil ).

    5. WPC --A kind of completely industrial products, not natural, easy to be deformed, fragile and broken, hard to be dissolved and not Eco-friendly.


Date comparison


Tab.1

Performance

THJ Outdoor bamboo

Nature anticorrosive wood

Man-made anticorrosive wood

Carbonized wood

WPC

Principal

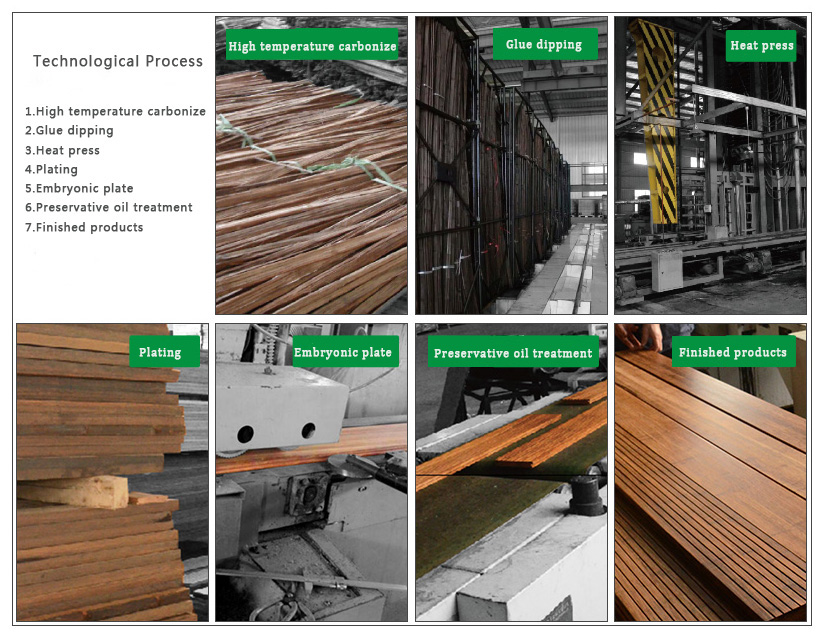

Through physical process, hot pressing, carbonized

Nature corrosion

Preservative treatment with chemicals

Carbonized in high temperature

Plastic processing technology

surface

Unique grains of bamboo (brown and dark color)

Keep the original wood grain

Green in color

Dark color-brown

Dull

Abrasion-resistance corrosion

Excellent

Good

Good

Good

Good

Environmental preformance

Excellent

Excellent

Bad

Good

Good

Anti termite

Excellent

Bad

Good

Good

Good

Stability

Excellent

Good

Easy shaped

Good

Easy shaped in high temperature

Market price

Middle high

Highest

Low

Middle

Middle Low

Tab.2

No.

Species

Moisture rate(%)

Density (kg/m3)

Expansion rate of water absorption %

Hardness(Gpa)

1

THJ outdoor bamboo

4.7

1.23

0.35

70.4

2

Teak

9

0.7

0.4

55.8

3

Merbau

14

0.8

0.41

61.7

4

Red cedar

12

0.35

0.6

44.1

5

Jarrah

17

0.57

0.6

47.1

6

Carbonized pinus sylvestris

12

0.43

1

44.3

7

Pinus sylvestris

12

0.46

1.3

43.1


How To Install Taohuajiang Bamboo wall cladding?

The correct order of wall installation should be bottom-up. First of all, the first wall  panel should be fixed on the bottom joist of the wall which needs to be installed,at the same time, the raise part of the clips are embedded in the groove of the wall panel and locked with screws.(Notice: if THJ joist used, always pre-drill the holes to avoid cracking. Use the joist in direction from top.)


Consideration:

1. Before installing, please keep the products in dry and shade place, avoid the sunshine and the rain. Defects in surface caused by improper storage, is insufficient to cause customer complaint.

2. Before installation, clean up the wall, make sure the basic is flat and stable. If threre is no soild masonry on the substrate, the joist must be fixed the the main body of the building in a soild frame and in accordance with the relevant building regulations and design requirements.

3. The distance between the joist must be between 400 to500mm , by a wall cladding of 1860mm length need mininum 5 joists.

4. Make sure the wall and wall cladding keep dry before installation.
